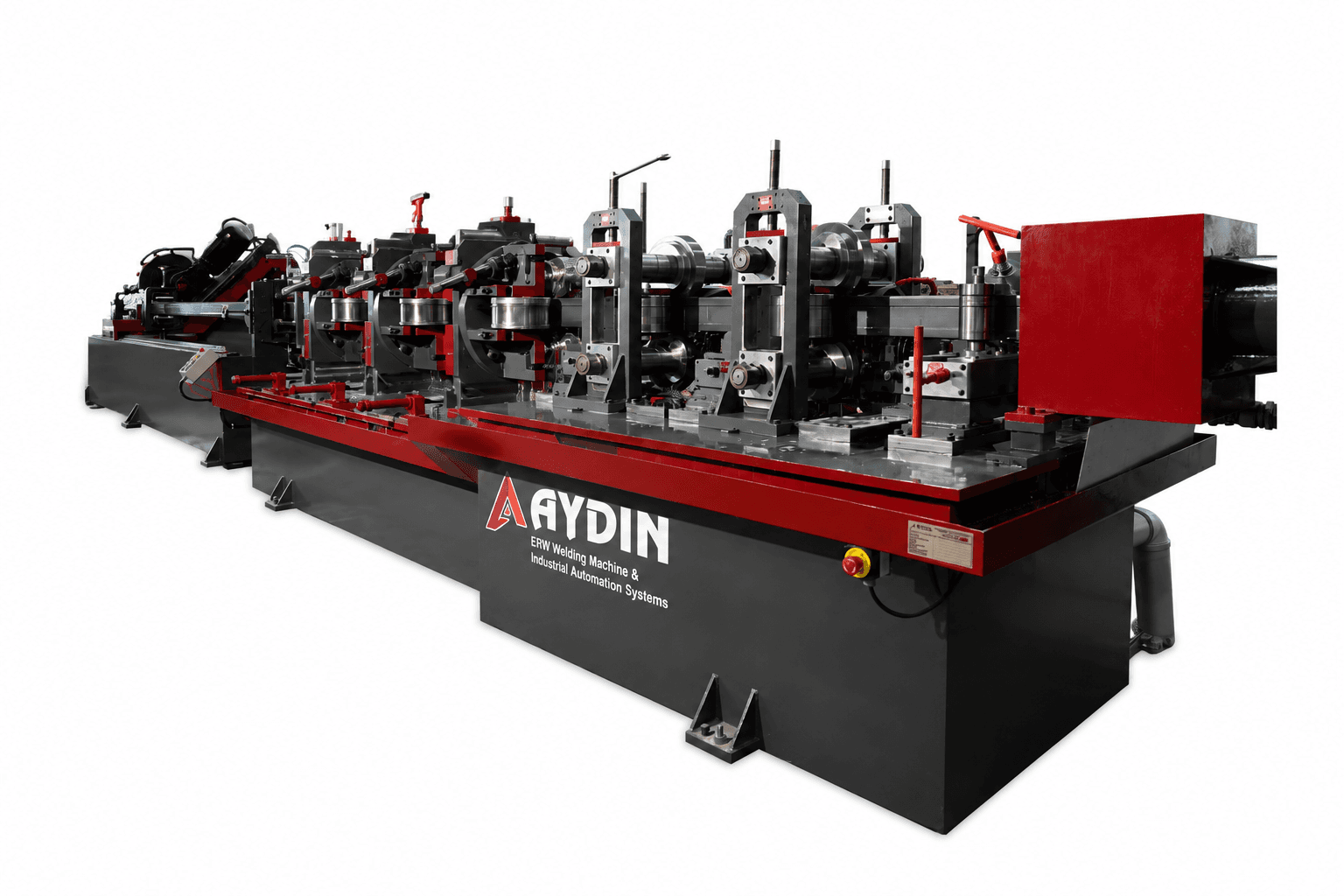

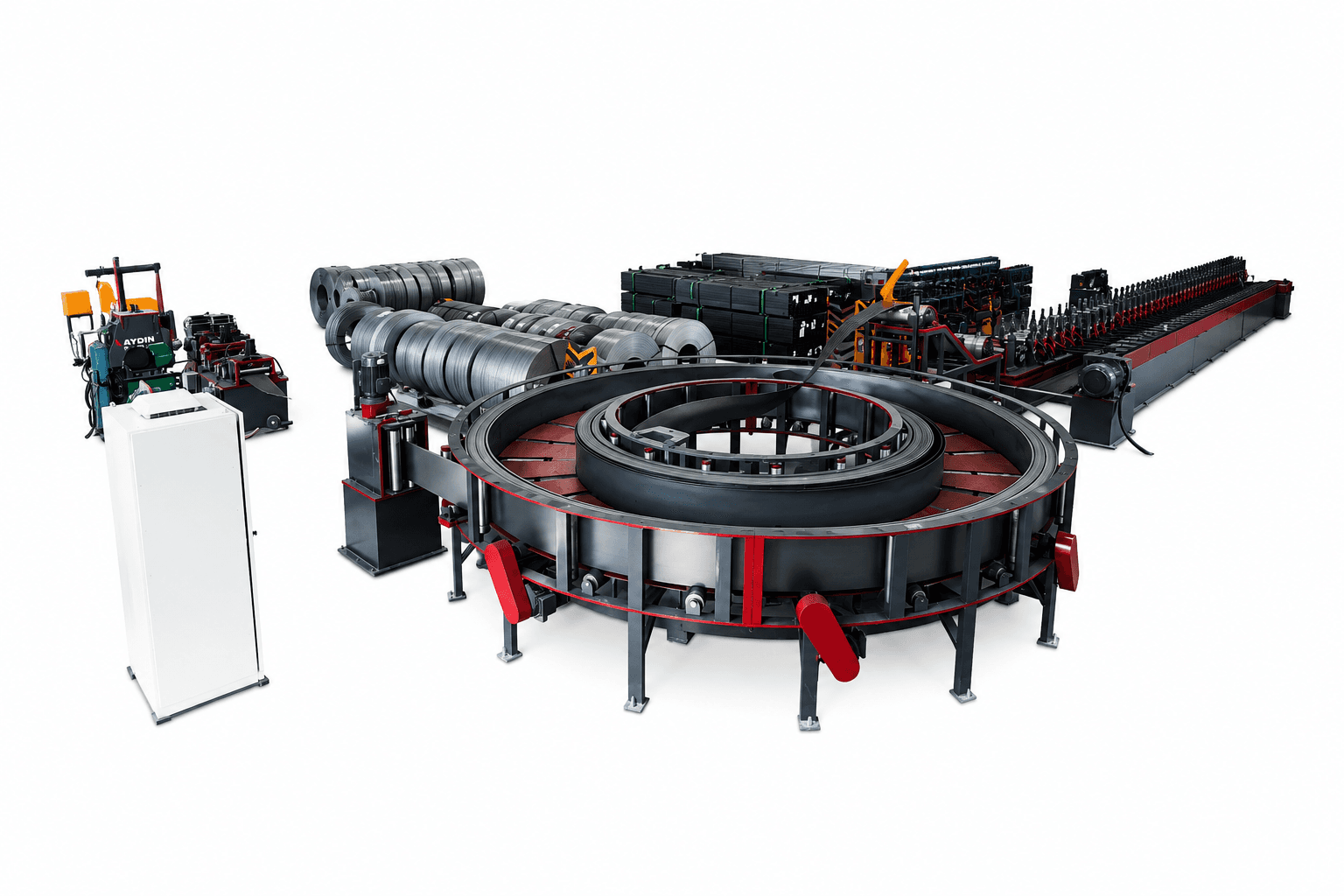

ERW Pipe & Profile Production Line
High-capacity line for round, square and rectangular profiles.
Overview
At AYDIN Otomasyon we design and manufacture high-performance ERW pipe and profile production lines tailored to the needs of different industries. Thanks to our modern engineering, our lines deliver high production capacity, precise dimensional tolerances and reliable weld quality.
Suitable for producing round, square and rectangular profiles, our systems stand out with energy efficiency, ease of operation and long service life. From project design to commissioning, we provide comprehensive technical support at every stage for sustainable and efficient production.
Machine Units
1Band Opener

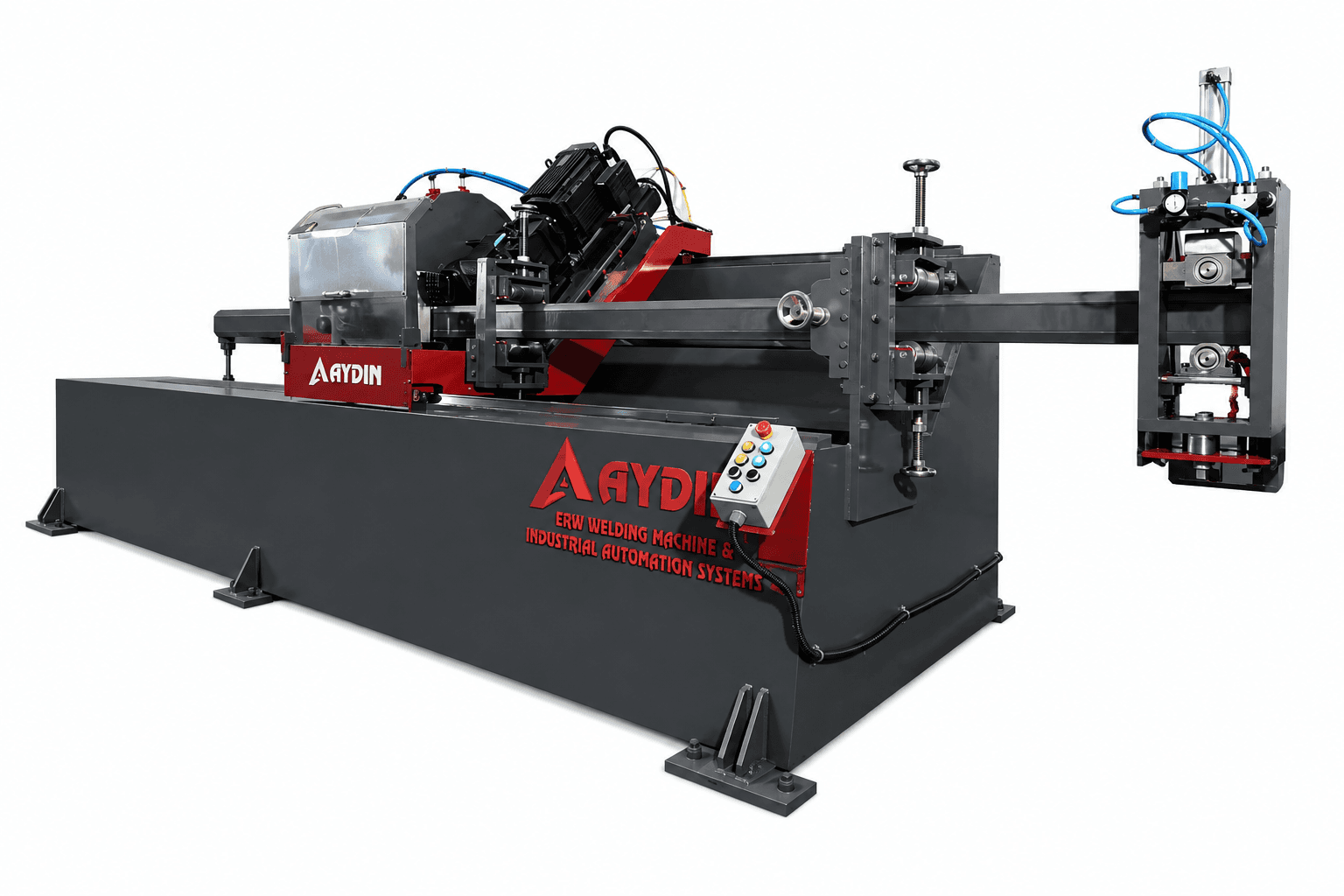

2Strip End Welding Machine

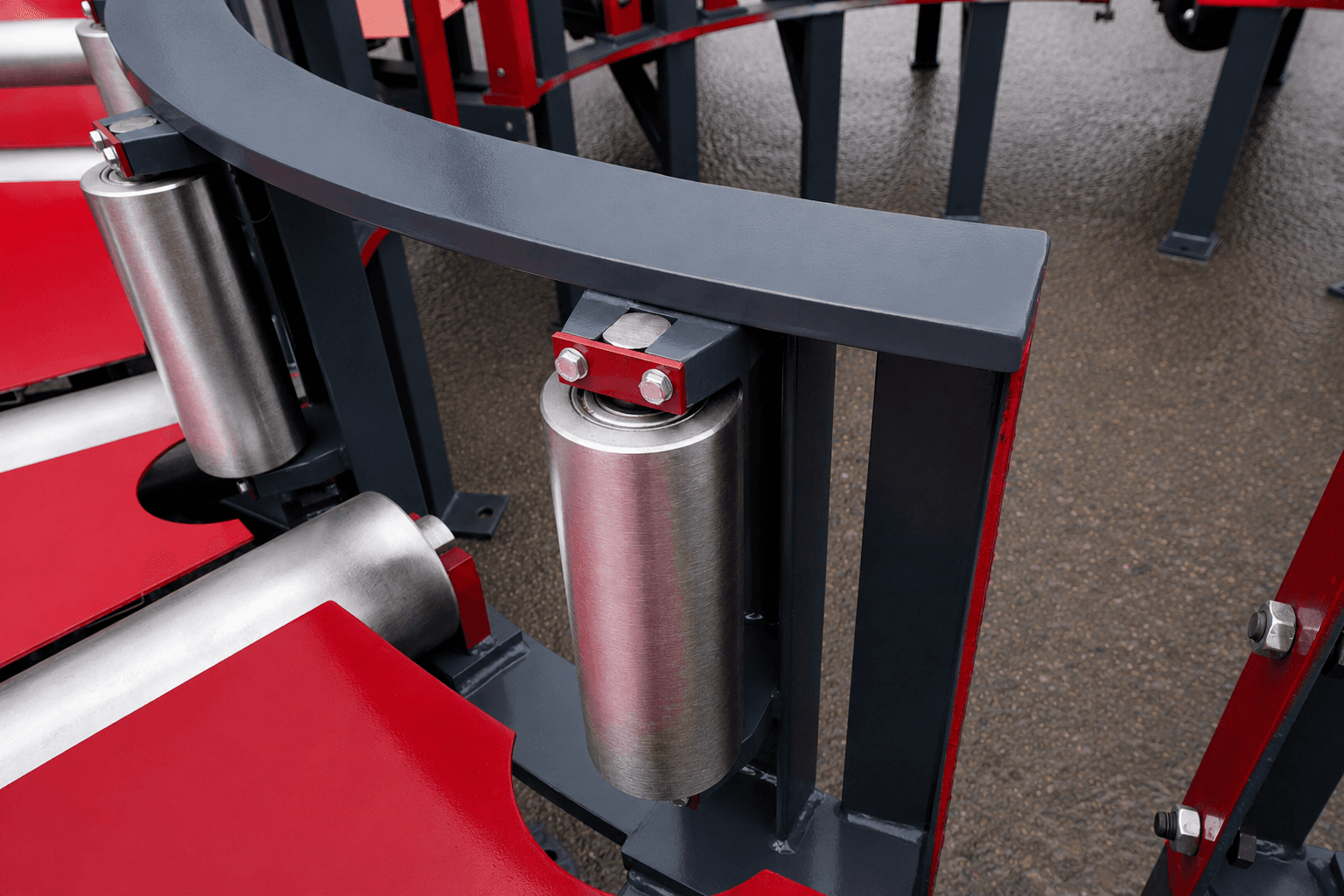

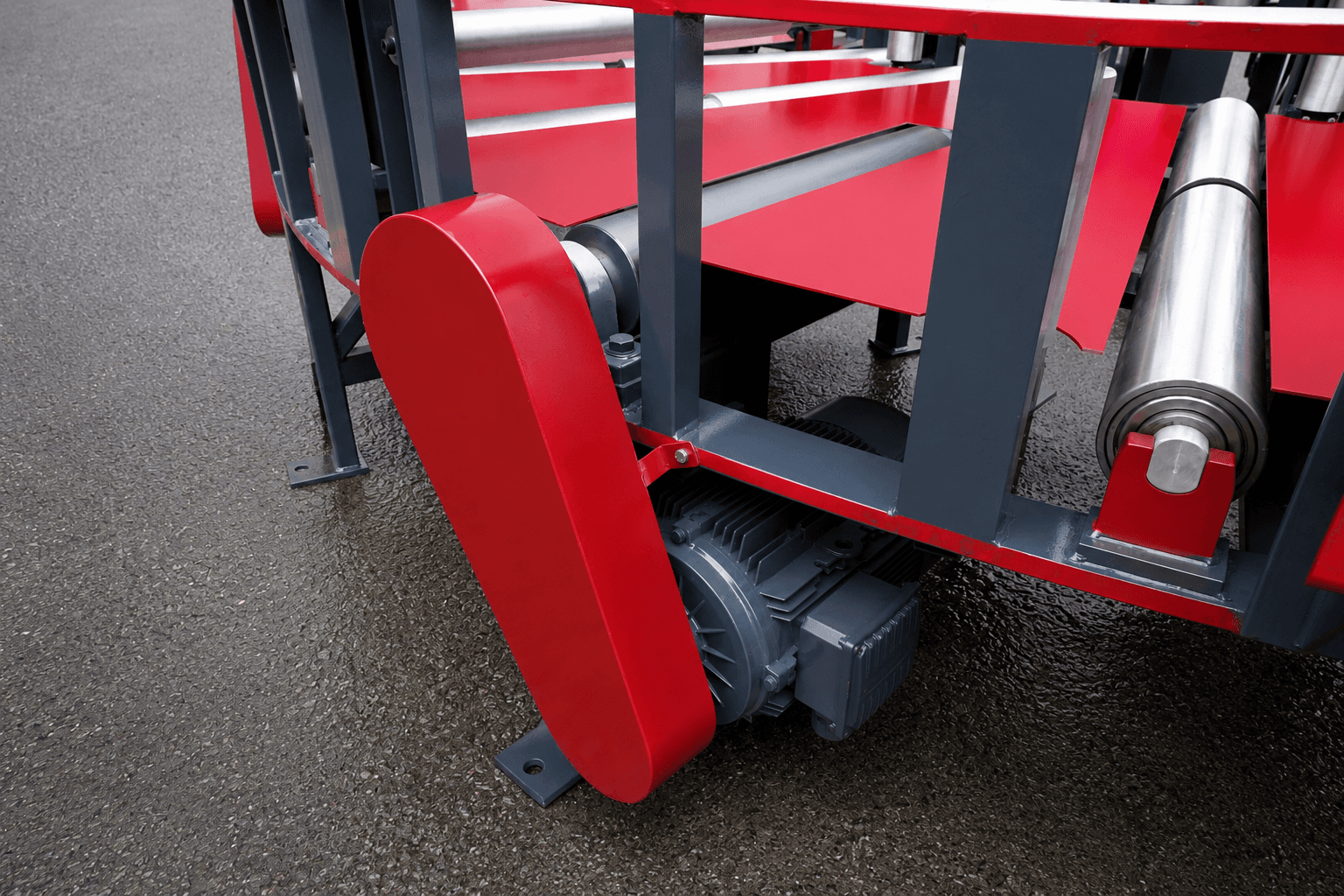

3Accumulation Machine
4Forming Unit
5Welding Group

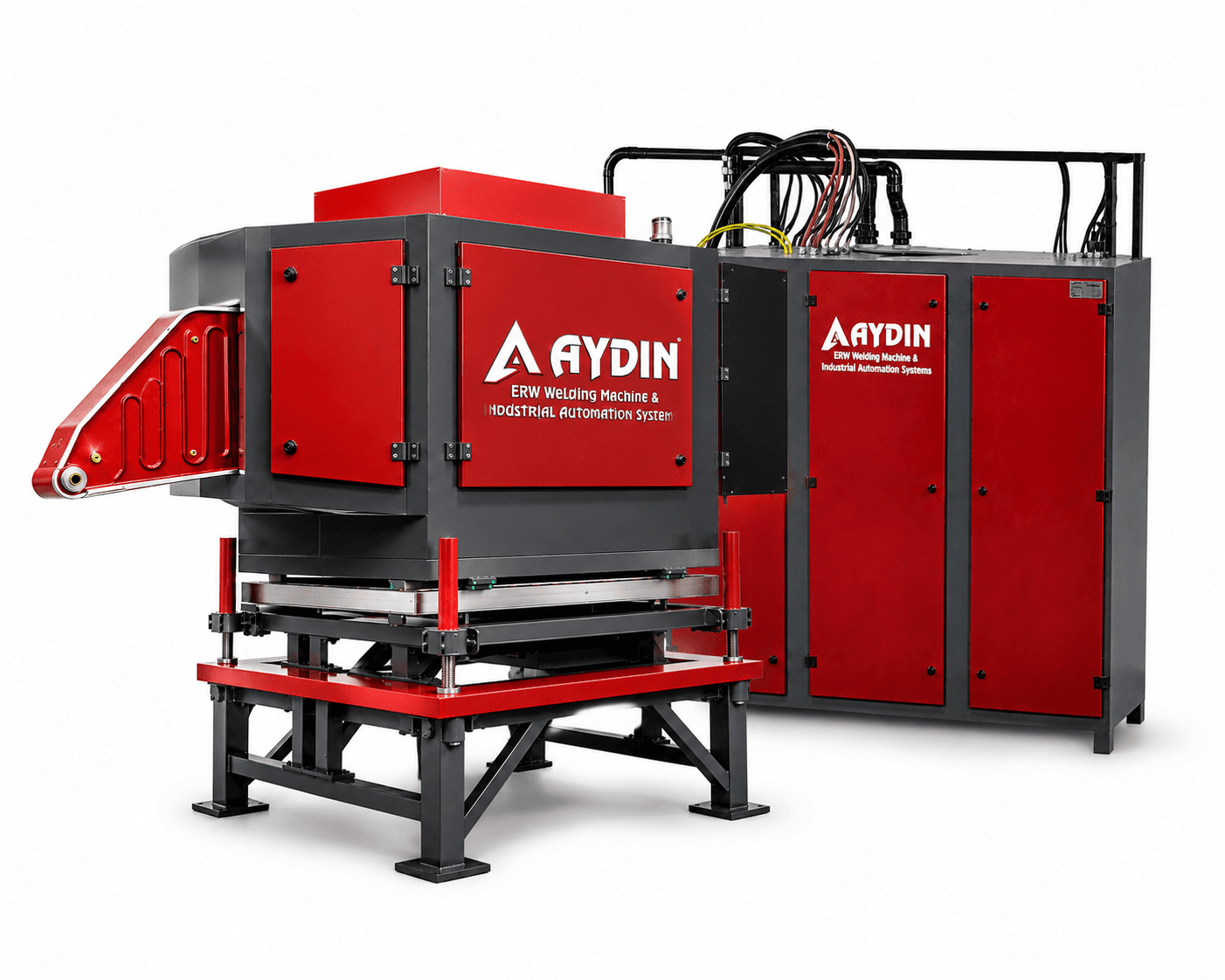

6Solid State HF Welding
7Deburring Machine
8Cooling Pool
9Calibration Group
Technical Specifications
| Model | Min–Max Dia of Pipe (mm) | Min–Max Dia of Square Profile (mm) | Min–Max Dia of Rectangular Profile (mm) | Max Speed | Min–Max Length of Product |
|---|---|---|---|---|---|
| EA-80 | Ø8–Ø25 | 10×10–20×20 | 10×10–20×20 | 150 m/min | 2000 mm |
| EA-120 | Ø10–Ø38 | 10×10–30×30 | 10×10–30×30 | 150 m/min | 2000 mm |
| EA-160 | Ø13–Ø51 | 12×12–40×40 | 12×12–40×40 | 140 m/min | 3000 mm |
| EA-200 | Ø16–Ø63 | 12×12–50×50 | 12×12–50×50 | 120 m/min | 3000 mm |
| EA-280 | Ø19–Ø89 | 15×15–70×70 | 15×15–70×70 | 110 m/min | 3000 mm |
| EA-400-1 | Ø38–Ø127 | 30×30–100×100 | 30×30–100×100 | 100 m/min | 4000 mm |
| EA-400 | Ø51–Ø127 | 40×40–100×100 | 40×40–100×100 | 90 m/min | 4000 mm |
