ERW Boru Profil Hattı

Makina Üniteleri

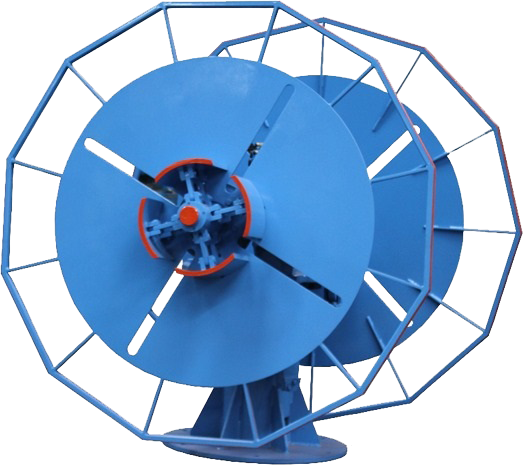

Bant Açıcı

Bant Ucu Kaynak Makinesi

Form Ünitesi

Kaynak Grubu

Solid State Yüksek Frekans Kaynak

Çapak Alma Makinesi

Soğutma Havuzu

Kalibrasyon Grubu

MODEL	THE MIN-MAX DIA OF PIPE(MM)	THE MIN-MAX DIA OF PROFILE(MM)	THE MIN-MAX THICK OF STEEL PIPE(MM)	THE MIN-MAX THICK OF STEEL PROFILE(MM)	THE MAX SPEED	MIN-MAX LENGTH OF PRODUCT
EA80	Ø8-Ø25	10x10-20x20	0,3-1,5	0,3-1,5	150m/min	2000mm
EA120	Ø10-Ø38	10x10-30x30	0,5-1,5	0,5-1,5	150m/min	2000mm
EA160	Ø13-Ø51	12x12-40x40	0,5-2,5	0,5-2,5	140m/min	3000mm
EA200	Ø16-Ø63	12x12-50x50	0,6-3,0	0,6-3,0	120m/min	3000mm
EA280	Ø19-Ø89	15x15-70x70	0,8-4,0	0,8-4,0	110m/min	3000mm
EA400-1	Ø38-Ø127	30x30-100x100	1,0-4,0	1,0-4,0	100m/min	4000mm
EA400	Ø51-Ø127	40x40-100x100	1,5-6,0	1,5-6,0	90m/min	4000mm
